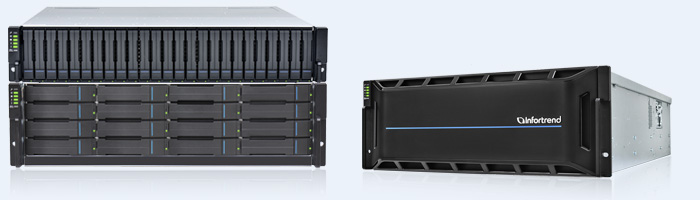

Система хранения данных EonStor GS 3000 2U/12bay, dual redundant controller subsystem

Model

• GS 3012
• GS 3024B
• GS 3025B
• GS 3016
• GS 3024
• GS 3060

Form Factor

• 2U 12-bay
• 2U 24-bay
• 2U 25-bay
• 3U 16-bay
• 4U 24-bay
• 4U 60-bay

Controller

Dual redundant controllers

Host Ports

• Onboard host ports
  • 4 x 1Gb/s iSCSI ports (2 per controller)
  • 4 x 10Gb/s iSCSI ports (2 per controller)
• More host options:
  • 16 x 8Gb/s Fibre Channel ports (8 per controller)
  • 8 x 16Gb/s Fibre Channel ports (4 per controller)
  • 16 x 16Gb/s Fibre Channel ports (8 per controller, No Remote Replication support)
  • 16 x 10Gb/s FCoE ports (8 per controller)
  • 16 x 1Gb/s iSCSI ports (8 per controller)
  • 8 or 16 x 10Gb/s iSCSI ports (SFP+) (4 or 8 per controller)
  • 8 x 10Gb/s iSCSI ports (RJ-45) (4 per controller)
  • 8 x 25Gb/s iSCSI ports (SFP28) (4 per controller)
  • 8 x 40Gb/s iSCSI ports (QSFP+) (4 per controller)
  • 8 x 56Gb/s InfiniBand ports (4 per controller)  - for Linux only, block level only
  • 8 x 12Gb/s SAS ports (4 per controller)

Cache Memory

Default DDR4 16GB, up to 32GB, 64GB, 128GB or 256GB

Cache Backup Techniques

Super Capacitor + Flash module

Maximum Number of Drives

Via expansion enclosure: 448 and 896 (with expansion board)

Drive Connectivity

12Gb/s SAS

Drive Advanced Features

S.M.A.R.T. support/ Automatic bad-sector reassignment/ Dedicated bandwidth to each connected drive

Supported Drives

• 2.5" SAS SSDs
• 2.5" SATA SSDs
• 2.5" 10,000RPM SAS drives
• 2.5" 15,000RPM SAS drives
• 3.5" 7,200 RPM Nearline SAS drives
• 3.5" 7,200 RPM SATA drives

Protocol Support

EonCloud Gateway

Support the integration with following cloud providers :

• Amazon S3
• Microsoft Azure
• Alibaba Cloud
• OpenStack

Corresponding Expansion Enclosure

JB 3012A, JB 3016A, JB 3024BA, JB 3025BA, JB 3060, JB 3060L

RAID Functionality

• Global, designated or enclosure hot-spare
• RAID levels supported : RAID 0, 1, (1+0), 3, 5, 6, 10, 30, 50, 60
• Online expansion by:
  • Adding new drives
  • Copying and replacing drives with drives of larger capacity
• RAID migration
• Configurable stripe size and write policy per system
• Intelligent drive handling
  •  In degraded mode: skips irreparable blocks to continue rebuild
  •  In normal operation: data-block verification and repair

Data Protection and Data Service

Default software features include:

• SED (Self-encrypting drives)
• Thin-provisioning
• Snapshot: 64 per volume/ 128 per system
• Block-level local replication: Replication pairs per source volume: 4; Replication pairs per system: 16
• File-level remote replication (Rsync)

Optional software features require additional license:

• SSD cache
• Automated tiering (2/ 4 tiers)
• Advanced snapshot: 256 per volume/ 4096 per system
• Advanced block-level local replication: Replication pairs per source volume: 8 ; Relication pairs per system: 256
• Advanced block-level remote replication: Replication pairs per source volume: 8 ; Relication pairs per system: 64

Green Design

• 80 PLUS-certified power supplies delivering more than 80% energy efficiency
• Intelligent multi-level drive spin-down

Availability and Reliability

Redundant, hot-swappable hardware modules/ CacheSafe technology/ Multi-pathing support (EonPath)/ Device mapper support

Notification

Various event notification methods including email and SNMP trap.

Management

• Web-based EonOne management software
• Automated cache flush and caching mode operation per enclosure status
• Module status LED indicators: component presence detection & thermal sensors via I2C bus
• Storage Resource Management to analyze history records of resource usage
• Automate repeatable management tasks by flexible workflow

Network Configuration

• IPv6 support
• Fixed or dynamic IP address
• Dual Gigabit Ethernet with Jumbo Frame
• Port trunking/ NIC teaming/ Link aggregation (IEEE 802.3ad)
• DHCP client
• MPIO, MC/S support

Access Right Management

• User account management
• Group management
• Folder management
  - Folder and subfolder access control
• Folder quota
• Comprehensive access control action items
  - All Controls, Read, Read and Run, Write, Modify, List
• Support Windows Active Directory Authentication
  - Domain Users Login via CIFS/ SMB, AFP, FTP, and file explorer
• LDAP on Linux

OS Support

Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 (including Hyper-V), Windows 7 SP1 / Windows 8.1, RedHat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris, Mac OS X, VMware, Citrix XenServer

Service and Support

Standard service

• 3-year limited hardware/software warranty and 8x5 phone, web, and email support

​Upgrade/Extension service (optional and service may vary by region)

• replacement part dispatch on the next business day (up to 5 years)

Power

GS 3000 (Excluded GS 3060L)

• Power supplies: Redundant/hot-swappable 530W x 2
• AC voltage: 100VAC @ 10A to 240VAC @ 5A with PFC (auto-switching)
• Frequency: 47-63 Hz

GS 3060L

• Power supplies:Redundant/hot-swappable 1200W x 2
• AC voltage: 100-127VAC/12.47A, 200-240VAC/7.08A with PFC (auto-switching)
• Frequency: 47-63Hz

Environmental

• Temperature:
  • Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
  • Non-operating: -40 to 60°
• Altitude: Sea level to 3048m(10000ft) operating / sea level to 12,192m (40,000ft) non-operating
• Relative humidity: 5 to 95% non-condensing, operating and non-operating

Regulatory

• Safety: UL, BSMI, CB, EAC
• Electromagnetic Compatibility: CE, BSMI, FCC, KC

Dimensions

• GS 3012 : 447mm (W) x 88mm (H) x 500mm (D)
• GS 3024B : 447mm (W) x 88mm (H) x 500mm (D)
• GS 3025B : 447mm (W) x 88mm (H) x 500mm (D)
• GS 3016 : 447mm (W) x 130mm (H) x 500mm (D)
• GS 3024 : 447mm (W) x 175mm (H) x 500mm (D)
• GS 3060 : 448mm (W) x 176mm (H) x 840mm (D)

(Without chassis ears / protrusions)

Weight (Without HDDs)

• GS 3012
  14.5kg/ 31.97lbs

• GS 3024B
  14.64kg/ 32.28lbs

• GS 3016
  17.44kg/ 38.45lbs

• GS 3024
  19.18kg/ 42.28lbs

• GS 3060
  60.16kg/ 132.63lbs

Package Dimensions

• GS 3012 : 780mm (W) x 379mm (H) x 588mm (D)
• GS 3024B : 780mm (W) x 338mm (H) x 588mm (D)
• GS 3025B : 780mm (W) x 340mm (H) x 588mm (D)
• GS 3016 : 780mm (W) x 423mm (H) x 588mm (D)
• GS 3024 : 780mm (W) x 465mm (H) x 588mm (D)
• GS 3060 : 620mm (W) x 460mm (H) x 1140mm (D)
