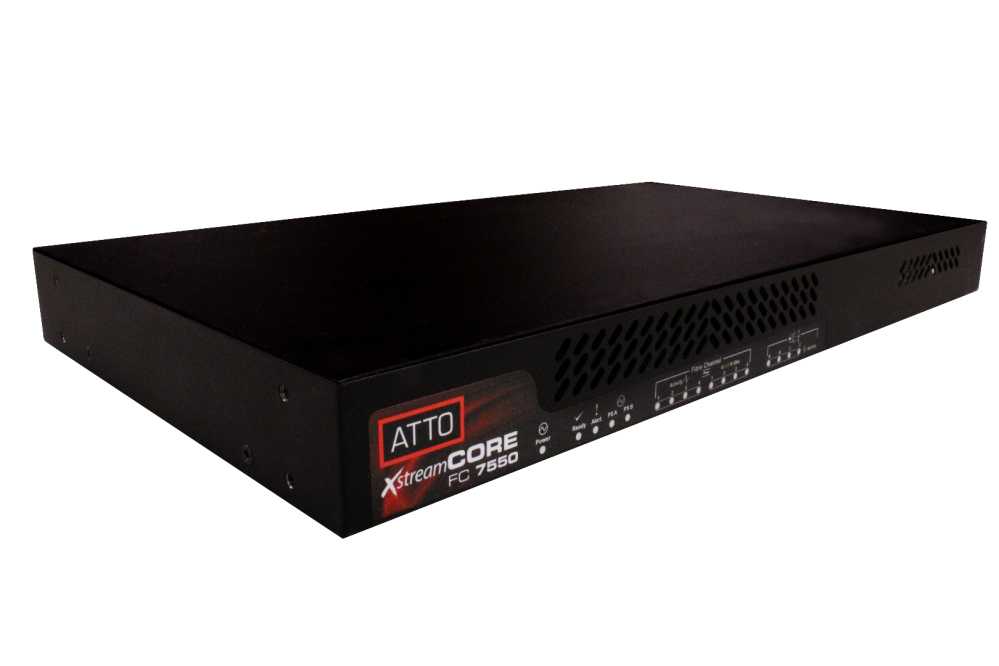

Интерфейсный мост XstreamCORE 7550 FC to SAS

 Technology:

• xCORE™ Acceleration Technology to eliminate bottlenecks
• eCORE™ Control Engine adds common, open storage services
• XstreamVIEW™ remote management user interface for configuration, monitoring and management of ATTO’s storage controller products.
• Host LUN Mapping initiator to LUN mapping
• Drive Map Director™ patented SAS device mapping
• Support for Extended Copy (LID1) to offload CPU, memory and storage fabrics
• XstreamCORE uses ATTO patented technology (US Patents #US7836225B2, US8291132B2, US7788324B2, US8504770B2)

Host Connectivity:

• Four 16Gb/s Fibre Channel ports
• Auto negotiates to 16Gb, 8Gb or 4Gb Fibre Channel
• Includes four optical 16Gb/s LC SFP+ modules
• Multi-initiator access for all attached storage

Storage Connectivity:

• Four x4 12Gb/s Mini-SAS HD connectors (16 phys)
• Supports SAS processor devices
• Supports up to 240 drives (extendable to 960 for qualified customers)
• Supports SAS and SATA flash solid state disk drives (SSD)
• Supports SAS and SATA hard disk drives
• Supports SAS Tape Drives and Libraries
• Supports SAS/SATA Optical Drives
• Supports Shingled Magnetic Recording Archive Drives (SMR)
• Supports RAID arrays (Multiple LUNs behind a target)

Performance:

• Up to 6GB/s sustained transfer rate
• Up to 1.1M 4K IOPS per controller
• 4 microsecond end-to-end latency

Management:

• SNMP and SNMP MIB support
• Built in temperature monitoring
• Statistic Reporting for SAS and Fibre Channel ports

Physical:

• Top-of-rack controller
• Dual hot-swappable power supplies
• No batteries
• RoHS Compliant
• Advanced integration available for OEM applications
• 2 year standard product warranty
• Optional 5 year total warranty and advanced replacement available
