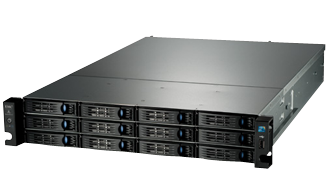

Iomega Сетевой накопитель StorCenter px12-350r Server Class Series 36TB (12 x 3TB) (36050)

Технические характеристики

Specifications

• 2U form factor, 12 slots for 3.5 inch SATA-II Hard Disk Drives
• Intel Core2 Duo E8400  @ 3GHz CPU
• 4GB DDR2 Memory
• Four (4) 10/100/1000 Mbps Ethernet ports (RJ 45 connector)
• Four (4) 7200RPM Server Class SATA hard disk drives
• Reliability MTBF: 1,200,000 hours
• Latency/seek time: 4.17 msec
• Rotational Vibration Sensor: Yes
• Spindle Speed: 7200 rpm
• RAID 0, 1, 10, 5, and 6 protection on a per-Storage Pool basis
• Power Consumption
• Max: 200W
• Min: 110W (drives spun down)
• iSCSI: Supports both file and block storage pools, 256 hosts maximum with the following parameters;
• Block storage pools; 32 LUNS maximum per pool. 128 LUNs maximum per device.
• File storage pools; 256 LUNs Maximum per pool. 256 LUNs maximum per device.
• Three USB 2.0 ports; One front, two rear
• LAN standards: IEEE 802.3, IEEE 802.3u
• AC Voltage 100-240 VAC, 50-60 Hz
• Acoustic noise – 56 dBA maximum
• Temperature, Humidity and Altitude:

• User interface localized for English, French, Italian, German, Spanish, Brazilian Portuguese, Russian, Traditional Chinese, Simplified Chinese, Korean, Japanese, Arabic, Hebrew, Turkish, Swedish, and Polish

System Requirements

• Available 10/100/1000 Mbps network Ethernet port (required).
• Internet Explorer 7, Firefox® 3.x, Safari 3 or later browser.
• CD or DVD drive to install software.
• Personal cloud and remote access specific requirements:
  • Internet connection
  • Universal Plug and Play (UPnP™) compatible router, or administrative rights to port forward.
  • Recommended minimum sustained connection speeds for a good Personal Cloud experience.
    • Download: 2.5 Mbit/s
    • Upload: 500Kbit/s
  • Personal Cloud is not compatible with Active Directory
  • Personal Cloud is not compatible with XP 64 bit

PC Users:

• Microsoft® Windows XP or newer.

Mac® Users:

• Mac OS X 10.4 or newer.

Linux® Users:

• Linux: Redhat Enterprise 4-6, Ubuntu 7.10 - 10.10, OpenSUSE 10.3 – 11.3

Contents

• Iomega® StorCenter™ px12-350r Rackmount NAS Server
• Sliding rail kit for standard 19” rack
• Ethernet cable
• Power cables (support for worldwide distribution – cable for:
  • USA
  • UK
  • Japan, Europe
  • Australia)
• Printed Quick Start Guide
• Solutions CD with system administration software and user manual

Weight and Dimensions

All dimensions LxWxH and are approximations.
