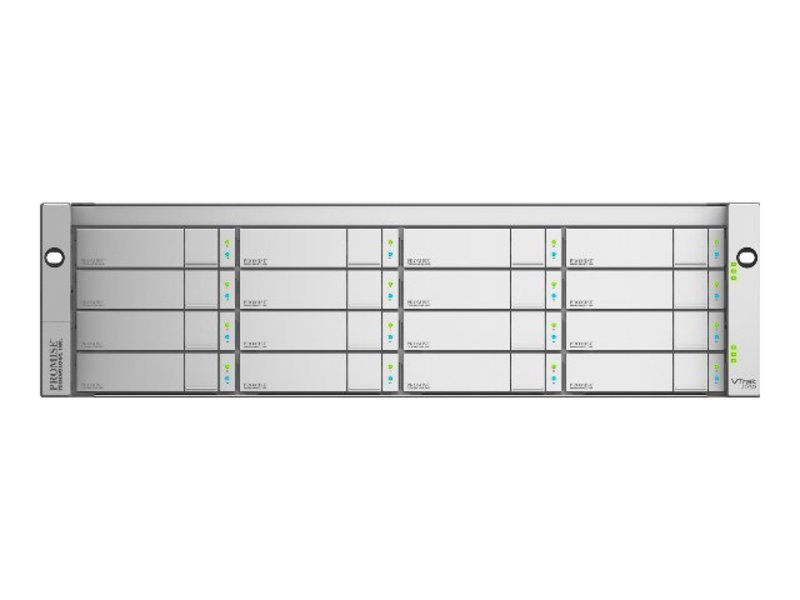

Promise Дисковый массив VTrak E630fD Dual controller 8GB FC system 16 дисков, 16x2TB 7K2 NL-SAS HDD (F40E63F08010000)
| Цена: |
1493670 р |
| Наличие: |
Под заказ
|
| Артикул: | F40E63F08010000 | | Производитель: | Promise |
 |
|
Controller Module Features
| 2U/12 Bay
| 3U/16 Bay
| 4U/24 Bay
| | Model # - Single Controller | VTE330fS | VTE630fS | VTE830fS | | Model # - Dual Controller | VTE330fD | VTE630fD | VTE830fD | | Drive Support | Up to 12 3.5”/2.5” HDDs or SSDs | Up to 16 3.5”/2.5” HDDs or SSDs | Up to 24 3.5”/2.5” HDDs or
SSDs | • SAS: 6 Gbps, 3Gbps
• NL-SAS: 6 Gbps, 3Gbps
• SATA: 6Gbps, 3Gbps and 1.5Gbps
• Supports any mix of SAS and SATA drives simultaneously in the same enclosure | | External I/O Ports (per controller) | • Four 8Gbps Fibre Channel ports, backwards compatible with 4Gbps and 2 Gbps Fibre Channel
• One external SAS port using industry standard Mini SAS 4x wide-port-SAS connectors (SFF-8088) to connect up to 7 cascading
expansion JBODs | | Data Cache | 2GB data cache per controller protected with hot-swappable battery backup unit (BBU) |
Operational Features
| RAID Levels
| 0, 1, 1E, 5, 6, 10, 50, 60
| RAID Stripe Size Support
| 64K, 128K, 256K, 512K and 1MB
| Hot Spares
| Global or dedicated with revertible option
| | Max LUNs per Subsystem | 1024
| Max LUNs per array
| 32
| | Advanced Storage Features | • Advanced Cache Mirroring over PCIe Gen2
• Simple, drag-and-drop LUN Masking and Mapping
• Asymmetric LUN Unit Access (ALUA)
• Volume Copy
• PerfectFlash - Non-Disruptive Software Update
• I/O performance & power monitoring tools
• USB Service Log
• LDAP Support for central user management | | Background Activities | • Media Patrol
• Background Synchronization
• Foreground Initialization
• Rebuild
• Redundancy Check
• Disk SMART Polling
• Online Capacity Expansion (OCE)
• RAID Level Migration (RLM)
• UPS Monitoring
• Feature rich task scheduler for background activities | | PerfectRAID Features | • Predictive Data Migration (PDM)
• Intelligent Bad Sector Remapping
• SMART Error Handling
• NVRAM Error Logging
• Disk Slot Power Control
• Read/Write Check Table
• Write Hole Table | | GreenRAID Features | • Four levels of advanced power management disk drive (MAID) support
• Efficient 80Plus Certified power supplies |
System Management
| | Management Interfaces | • Web Based management using WebPAM PROe (Ethernet)
• Command Line Interface (CLI) or Command Line Utility (Serial Port or Ethernet via Telnet, SSH)
• Third Party Management Support via SNMP, CIM
| | Supported Operating Systems | Windows 2008, Oracle Linux Red Hat Linux, SuSE Linux, VMware 4.x
|
Mechanical Specification
| Voltage
| 100-240 Vac Auto-Ranging | Current (Maximum)
| 10 A @ 100 VAC; 5 A @ 200 VAC
| Power Conversion Efficiency
| >80% @ 110V (>20% load), >80% @ 240V (>20% load)
| Temperature Range
| Operational: 5° to 35°C
Non-Operational: -40° to 60°C
| Humidity
| Operational: 10% to 90% (Non-Condensing)
Non-Operational: 5% to 95% (Non-Condensing)
| Acoustic Noise Levels
| 55 dB (Typical)
65 dB (Maximum)
| | Shock | Operational: 5G, 11 ms duration
Non-Operational: 10G, 11ms duration
| Vibration
| Operational: 0.3G, 5 to 500 Hz
Non-Operational:: 1G, 5 to 500 Hz
| | Safety | CE, FCC Class A, UL/cUL, TUV, BSMI Class A, VCCI Class A, CB, KCC, NOM, GOST-R, IRAM, C-Tick, S-Mark | | Environmental Standards | RoHS, GreenPC, WEEE | | | 2U/12 Bay | 3U/16 Bay | 4U/24 Bay | | Power Supply | Dual 550W, 100-240 Vac auto-ranging,
50-60Hz, dual hot swap and redundant
with PFC, N+1 design | Dual 580W, 100-240 Vac auto-ranging, 50-
60 Hz, dual hot swap and redundant with
PFC, N+1 design | Dual 750W, 100-240 Vac auto-ranging, 50-
60 Hz, dual hot swap and redundant with
PFC, N+1 design | | Dimensions (H x W x D) | 13.1 x 44.7 x 50.7 cm
5.2 x 17.6 x 19.96 in | 13.1 x 44.7 x 50.7 cm
5.2 x 17.6 x 19.96 in | 17.4 x 44.7 x 50.7 cm
6.9 x 17.6 x 19.96 in | Weight
| 18 kg / 40 lbs (w/o drives)
| 25 kg / 56 lbs (w/o drives) | 27 kg / 60 lbs (w/o drives) |
|
