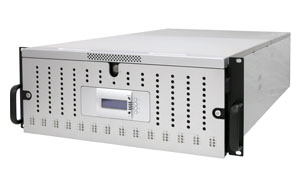

EPICa Series EP-4423S1/D1-F8S6
4U 8Gb FC – 6Gb SAS Redundant RAID Subsystem
Features
※ Supports RAID levels 0, 1, 10(1E), 3, 5, 6, 30, 50, 60 and JBOD
※ Supports online Array roaming
※ Online RAID level/stripe size migration
※ Online capacity expansion and RAID level migration
simultaneously
※ Support global and dedicated hot spare
※ Online Volume Set Expansion
※ Support multiple array enclosures per host connection
※ Greater than 2TB per volume set (64-bit LBA support)
※ Greater than 2TB per disk drive
※ Supports 4K bytes/sector for Windows up to 16TB per volume set
※ Disk scrubbing/ array verify scheduling for automatic repair of all
configured RAID sets
※ Login record in the event log with IP address and service (http,
telnet and serial)
※ Support intelligent power management to save energy and extend
service life
※ Support NTP protocol to synchronize RAID controller clock over the
on-board LAN port
※ Max 128 LUNs (volume set) per controller
※ Transparent data protection for all popular operating systems
※ Instant availability and background initialization
※ Multi-path & load-balancing support (Microsoft MPIO)
※ Automatic synchronization of firmware version in the dual-active
mode
※ Supports S.M.A.R.T, NCQ and OOB Staggered Spin-up capable
drives
※ Supports hot spare and automatic hot rebuild
※ Local audible event notification alarm
※ Redundant flash image for high availability
※ Real time clock support
Model
|
EP-4423S1/D1-F8S6 |
RAID Controller
|
8Gb FC – 6Gb SAS |
Controller
|
Single or Redundant |
Host Interface
|
Four / Eight FC-AL (8 Gb/s) |
Disk Interface
|
6Gb/s SAS, 6Gb/s SATA |
SAS expander
|
One / Two 6Gb/s SAS (SFF-8088) |
Capacity
|
|
- Direct Attached
|
42 Disks |
- Expansion
|
Up to 252 Disks |
Processor Type
|
800MHz Dual Core RAID-On-Chip processor |
Cache Memory
|
1GB ~ 8GB / 2GB ~ 16GB DDR3-1333
ECC Registered SDRAM |
Battery Backup
|
Optional |
Management Port support
|
Yes |
RAID Features
|
|
RAID level
|
0, 1,10(1E), 3, 5, 6, 30, 50, 60 and JBOD |
Array Group
|
Up to 128 |
LUNs
|
Up to 128 |
Hot Spare
|
Yes |
Drive Roaming
|
Yes |
Online Rebuild
|
Yes |
Variable Stripe Size
|
Yes |
E-mail Notification
|
Yes |
Online capacity expansion, RAID level /stripe size migration
|
Yes |
Online Array roaming
|
Yes |
Online consistency check
|
Yes |
SMTP manager and SNMP agent
|
Yes |
Redundant Flash image
|
Yes |
Instant availability and background initialization
|
Yes |
S.M.A.R.T. support
|
Yes |
MAID 2.0
|
Yes |
Bad block auto-remapping
|
Yes |
Enclosure
|
|
Platform
|
Rackmount |
Form Factor
|
4U |
# of Hot Swap Trays
|
42 |
Tray Lock
|
Yes |
Disk Status Indicator
|
Access / Fail LED |
Backplane
|
SAS2 / SATA3 |
# of PS/Fan Modules
|
1100W x 2 w/PFC |
# of Fans
|
11 |
Power requirements
|
AC 90V ~ 254V Full Range, 50Hz~60Hz |
Environmental
|
|
Relative Humidity
|
10% ~ 85% Non-condensing |
Operating Temperature
|
10°C ~ 40°C (50°F ~ 104°F) |
Physical Dimension
|
810(L) x 482.6(W) x 176(H) mm |
Weight (Without Disk)
|
48.5 / 50 Kg |
