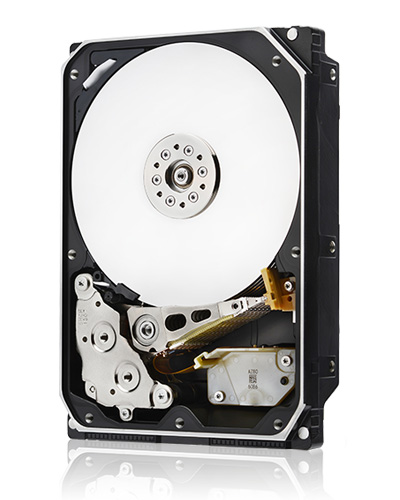

Жесткий диск 10TB 3.5-inch Helium Platform Enterprise Hard Drive

Model # / Part #

HUH721010ALE600 / 0F27452
HUH721008ALE600 / 0F27455
HUH721010ALN600 / 0F27502
HUH721008ALN600 / 0F27505
HUH721010ALE601 / 0F27453
HUH721008ALE601 / 0F27456
HUH721010ALN601 / 0F27503
HUH721008ALN601 / 0F27506
HUH721010ALE604 / 0F27454
HUH721008ALE604 / 0F27457
HUH721010ALN604 / 0F27504
HUH721008ALN604 / 0F27507

HUH721010AL4200 / 0F27402
HUH721008AL4200 / 0F27406
HUH721010AL5200 / 0F27352
HUH721008AL5200 / 0F27356
HUH721010AL4201 / 0F27403
HUH721008AL4201 / 0F27407
HUH721010AL5201 / 0F27353
HUH721008AL5201 / 0F27357
HUH721010AL4204 / 0F27404
HUH721008AL4204 / 0F27408
HUH721010AL5204 / 0F27354
HUH721008AL5204 / 0F27358
HUH721010AL4205 / 0F27405
HUH721008AL4205 / 0F27409
HUH721010AL5205 / 0F27355
HUH721008AL5205 / 0F27359

Interface

SATA 6Gb/s

SAS 12Gb/s

Capacity (GB)

10TB / 8TB

10TB / 8TB

Sector Size (Variable, Byes/sector)

4Kn: 4096
512e: 512

4Kn: 4096, 4112, 4160, 4224
512e: 512, 520, 528

Max Areal Density (Gbits/sq. in.)

816 (10TB)

816 (10TB)

Data Buffer (MB)

256

256

Rotational Speed (RPM)

7200

7200

Latency Average (ms)

4.16

4.16

Interface Transfer Rate (MB/sec, max)

600

1200

Sustained Transfer Rate (MB/sec, typ.)

249MB/s (10TB) / 225MB/s (8TB)
237Mib/s (10TB) / 215Mib/s (8TB)

249MB/s (10TB) / 225MB/s (8TB)
237Mib/s (10TB) / 215Mib/s (8TB)

Seek Time (read, ms, typical)

8.0 (Read), 8.6 (Write)

8.0 (Read), 8.6 (Write)

Error Rate (non-recoverable, bits read)

1 in 10^15

1 in 10^15

MTBF (M hours)

2.5

2.5

Annual Failure Rate (AFR)

0.35%

0.35%

Load/Unload Cycles

600,000

600,000

Availability (hrs/day x days/wk)

24x7

24x7

Reliability - Warranty (yrs)

5

5

Idle (Bels)

2.0 (Idle) / 3.6 (Operating)

2.0 (Idle) / 3.6 (Operating)

Requirement

+5 VDC, +12VDC

+5 VDC, +12VDC

Operating (W, typical)

6.8

9.5

Idle (W)

5.0

5.8

Power Consump. Efficiency Index (W/GB)

0.50W/TB
0.00050W/GB

0.58W/TB
0.00058W/GB

Z-Height (mm)

26.1

26.1

Dimensions (width x depth, mm)

101.6 (+/-0.25) x 147

101.6 (+/-0.25) x 147

Weight (g, max)

660

660

Ambient Temperature

5° to 60°C

5° to 60°C

Shock (half-sine wave)

70

70

Vibration (5 to 500 Hz)

0.67G RMS (XYZ)

0.67G RMS (XYZ)

Ambient Temperature

-40° to 70°C

-40° to 70°C

Shock (half-sine wave)

300 (2ms) / 150 (11ms)

300 (2ms) / 150 (11ms)

Vibration (5 to 500 Hz)

1.04G RMS (XYZ)

1.04G RMS (XYZ)
