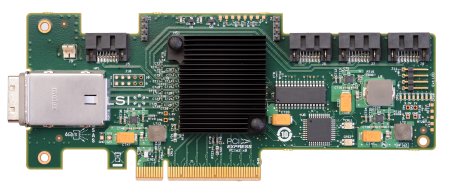

Контроллер Lenovo 6Gb SAS HBA (46M0907)

 Features and specifications

The 6Gb SAS Host Bus Adapter has the following specifications:

• SAS Controller: LSI SAS2008
• Eight SAS/SATA ports (four external, four internal)
• Up to 6 Gbps per port data transfer rate
• Four internal SATA x1 connectors
• One external SAS x4 connector (SFF-8088)
• PCI Express x8 2.0 host interface
• MD2 small form factor
• High performance I/O Processor: PowerPC 440 @ 533 MHz
• UEFI support
• RAID levels: None (uses RAID as provided by external disk enclosures)
• Maximum endpoint devices: 512
• Power consumption: 13.5 W

The 6Gb SAS Host Bus Adapter has the following key features:

• Connection to supported internal and external tape drives
• Connection to supported external storage controllers
• Power management support
• Support for SSP, SMP, STP and SATA protocols - flexible to optimize costs
• Environmentally friendly due to low power consumption
• LSI Fusion-MPT architecture drives more than 290,000 I/Os per second
• End-to-End CRC with Advanced Error Reporting
• T-10 Protection Model for early detection of and recovery from data corruption
• Spread Spectrum Clocking for EMI reductions
