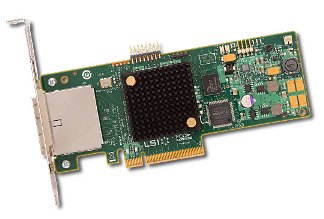

| IO Controller | LSISAS2308, Fusion MPT 2.0 |
| Storage Connectivity; Data Transfer Rates | 8 ports, 6Gb/s SAS 2.1 Compliant |
| SAS Bandwidth | Half Duplex
600 MB/s per lane |
| Port Configurations | 8 ea, x1 ports (individual drives)
2 ea, x4 wide ports |
| Host Bus | x8 lane, PCI Express 2.0 |
| PCI Data Burst Transfer Rates | Half Duplex
x8, PCIe, 4000 MB/s |
| Physical Dimensions | Low Profile (2.7” x 6.6”) |
| Connectors | Two Mini-SAS external connectors (SFF8088) |
| Brackets | Full height and low profile |
| Cable Support | Passive Copper |
| PCI Card Type | 3.3 V Add-in Card |
| Operating Voltage | +12V +/-8%; 3.3V +/-8% |
| PCI Power | 9 W typical (Airflow min 200 LFM) |
| Device Support | 1024 Non-RAID devices |
| Environmental | | Operating | Storage | | 0°C to 55°C | -45°C to 105°C | | 5 to 90% Non-condensing | 5 to 90% Non-condensing |
|
| MTBF | >3,000,000 Hours |
| Regulatory Certifications | EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950, RoHS; WEEE |
| OS Support | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD
See http://www.lsi.com/support/pages/downloads.aspx for details on versions |
