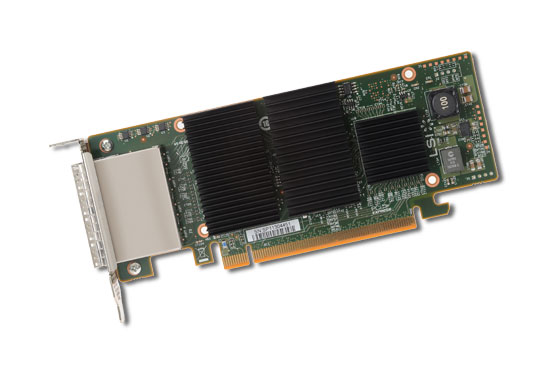

LSI Logic SAS-контроллер 9202-16e SGL, PCI-E, 16-port int 6 Gb/s, SAS (H3-25404-01B)

Цена:	92990 р
Наличие:	Есть на складе
Артикул:	9202-16e
Производитель:	LSI logic
Cпецификация:	Скачать PDF-файл

Описание

IO Controller

Two, LSISAS2008/ Fusion MPT 2.0

Storage Connectivity; Data Transfer Rates

16 ports; 6Gb/s SAS 2.0 compliant

SAS Bandwidth

Half Duplex
600 MB/s per lane

Port Configurations

16 ea, x1 ports (individual drives)
4ea, x4 wide ports
2ea , x8 wide ports

Host Bus

x16 lane, PCI Express 2.0 compliant

Physical Dimensions

Low Profile (2.7” x 6.6”)

Connectors

Four Mini-SAS HD external connectors (SFF8644)

Brackets

Full height and low profile

Cable Support

Passive, Active Copper

PCI Card Type

3.3 V Add-in Card

Operating Voltage

+12V +/-8%; 3.3V +/-8%

PCI Power (Nominal)

17W typical (Airflow min 200 LFM)

Device Support

1024 Non-RAID SAS/SATA devices

Environmental

Operating	Storage
0°C to 55°C	-45°C to 105°C
5 to 90% Non-condensing	5 to 90% Non-condensing

MTBF

1,000,000 hours

Regulatory Certifications

EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zeland (AS/NZS 3548); Safety: EN60950; RoHS; WEEE

OS Support

Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD
See http://www.lsi.com/support/pages/downloads.aspx for details on versions
