| PCI Bus |
PCI Express x8 |
| PCI Modes |
Bus Master DMA |
| PCI Data Burst Transfer Rates |
Half Duplex
1x – 250MB/s
4x – 1000MBs
8x – 2000MB/s |
Full Duplex
1x – 500MB/s
4x – 2000MB/s
8x – 4000MB/s |
|
| SAS Bandwidths |
Half Duplex
Single Lane – 300MB/s
Wide Port (2 Lanes) – 600MB/s
Wide Port (4 Lanes) – 1200MB/s |
Full Duplex
Single SAS Lane – 600MB/s
Wide Port (2 Lanes) – 1200MB/s
Wide Port (4 Lanes) – 2400MB/s |
|
| PCI Card Type |
3.3 Volt Add-in Card |
| PCI Voltage |
+12V ±10% |
| PCI Form Factor |
7.5” x 4.376” (Low Profile) |
| PCI Power |
10 Watts |
| Bracket |
Full Height |
| PCI Certification |
PCI Express 1.0a |
| PCIe Switch Chip |
IDT 89HPES24N3AZCBXG |
| SAS Bus |
Sixteen 3Gb/s SAS/SATA Ports |
| SAS Processor |
2x LSISAS1068E |
| Connectors |
Internal
N/A |
External
Four Mini-SAS x4 connectors (SFF8088) |
|
| LED Indicators |
Heart Beat
2 (1 per SAS Controller) |
Internal Activity
16 (one per phy)
1 (activity on any phy) |
Internal Link
16 (one per phy) |
|
| Max.Number of Physical Devices |
244 |
| Environments |
Operating
0°C to 60°C
5 to 90% Non-condensing |
Storage
-45°C to 105°C
5 to 90% Non-condensing |
|
| MTFB |
>200,000 Hours |
| Compliances |
EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950 |
Software
MegaRAID Storage Manager (MSM)
|
Graphical utility for creating, monitoring and managing RAID arrays
|
| OS Support |
Microsoft® Windows® 2000, Server 2003 32-bit (x86 and AMD64), and XP
Red Hat® Linux® RHEL 3
Novell® Netware®
SuSE® Linux®/SLES
Sun SPARC Solaris 2.6 thru 2.10 |
| Operating System Support |
All OS drivers are backed by extensive testing and validation to ensure optimum system performance.
For a list of the most current supported drivers, visit: lsi.com/support |
Support
Ordering Information |

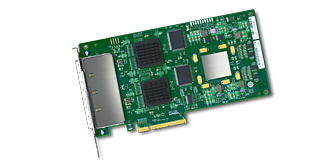

LSI SAS31601E Board P/N: See LSI Salesperson |
