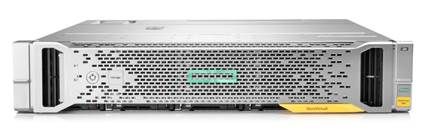

HPE Дисковый массив StoreVirtual 3200 4-port 1GbE iSCSI SFF Storage

Цена: 1041390 р
Наличие: Под заказ
Артикул: N9X16A
Производитель:Hewlett Packard
Cпецификация: Скачать PDF-файл

 StoreVirtual 3200 SAN Storage


Array



Number of controllers per array

2

Number of processors per controller

1x 6-core processor

Total array cache

16GB (8GB per controller)

Storage ports (1GbE iSCSI)

4 or 8 ports

RJ45 (no SFP+ required)

Storage ports (10GbE iSCSI)

4 ports

SFP+ (ordered separately)

Storage ports (8/16Gb FC)

4 ports

8/16Gb (speed determined by SFP+, ordered separately)





Enclosures



Expansion drive enclosures

Up to 3

LFF/SFF array/enclosure mixing

Supported

Maximum number of drives per array enclosure or drive enclosure

25 SFF / 12 LFF

Drive enclosure interface type

12Gb SAS3





Drives



Maximum total drives

100 SFF / 48 LFF

Maximum raw capacity

288TB

Maximum SSDs per array

25





Drive RAID levels

5, 6, 10

Minimum number of drives per tier1

4 (RAID 10), 6 (RAID 5), 12 (RAID 6)

Number of RAID devices per array1
(logical groups of drives with a common RAID type applied)

1 to 32

Maximum number of spare drives per enclosure

1

Maximum LUN size

128TiB





Supported Drive Capacities (all 12Gb SAS)



SFF SSDs

400GB, 800GB, 1.6TB, 3.2TB

LFF SSDs

400GB, 800GB

SFF HDDs

15K RPM: 300GB, 600GB

10K RPM: 300GB, 600GB, 900GB, 1.2TB, 1.8TB
7.2K RPM (MDL): 2.0TB

LFF HDDs

7.2K RPM (MDL): 2TB, 4TB, 6TB





Software Features



Thin Technologies

Thin Provisioning, Space Reclamation (T10 UNMAP)

Network RAID

0, 10 (selectable per volume)

Replication

Remote Copy2, Application Consistent Snapshots, SmartClone Technology

Sub-LUN tiering

Auto-tiering via Adaptive Optimization2

Maximum tiers supported

2





Additional Features



Maximum number of volumes

1,024

Maximum number of snapshots

2,048

Maximum number of initiators

512

Maximum LUNs per host

127

Maximum queue depth per host port

128

Customer self-installable

Yes

Supported languages (locales)

English (United States), Simplified Chinese, Japanese, Korean,
 Spanish (Latin America)

Base hardware support

3/0/0 (Three-year next business day parts exchange)

Base software support

1 years Standard Phone Support and 30 day defective media

Additional support options

Available via Support Services
