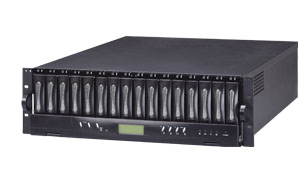

ProWare Дисковый массив Simbolo SB-3163E1-S3A3

Описание

Model	SB-3163E1-S3A3
Form-factor	3U 19-inch rackmount chassis
RAID processor	Intel IOP348 64 bit RISC
RAID Level	0, 1, 10(1E), 3, 5, 6 and JBOD
Cache memory	512MB ~ 4GB DDRII ECC SDRAM
No. of channels (host+drive)	2 + 16
Host bus interface	Two 4x mini SAS (3Gb/s)
Drive bus interface	SATA II
Hot-swap drive trays	Sixteen (16) 1-inch trays
Hot-swappable power supplies	Three (3) 300W power supplies w / PFC
Cooling fans	2 (blower)
Battery backup	Option
Drive Roaming	Yes
Online Rebuild	Yes
Online consistency check	Yes
SMTP manager and SNMP agent	Yes
Redundant Flash image	Yes
Instant availability and background initialization	Yes
R-Link support	Yes
SNMP Protocol Support	Yes
S.M.A.R.T	Yes
Online Array roaming	Yes
MAID	Yes
Bad block auto-remapping	Yes
Power requirements	AC 90V ~ 254V Full Range 12A / 6A at 110V / 220V, 50Hz/60Hz
Environmental
Relative Humidity:	10% ~ 85% Non-condensing
Operating Temp:	10°C ~ 40°C (50°F ~ 104°F)
Physical Dimensions:	133(H) x 482(W) x 609(D) mm
Weight	20.5kgs / 45.1Lbs (without drives)
