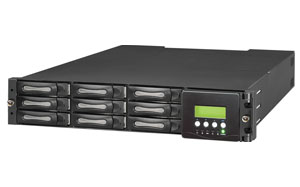

ProWare Дисковый массив Epica EP-2803E1-S3A3

Описание

Model	SB-2123E1-S3A3
Form - factor	2U 19-inch rackmount chassis
RAID processor	Intel IOP348 64 bit RISC
RAID level	0, 1, 10(1E), 3, 5, 6, 30, 50, 60 JBOD
Cache memory	512MB ~ 4GB DDRII ECC SDRAM
No. of channels (host + drive)	2 + 12
Host bus interface	Two 4x mini SAS (3Gb/s)
Drive bus interface	SATA II
Data transfer rate	Up to 300MB/Sec
Back plane board	SATA II
Hot-swap drive trays	Twelve(12) -inch trays
Hot-swappable power supplies	350W x 2 power supplies w / PFC
Cooling fans	2
Battery backup	Option
R-Link Support	Yes
SNMP Protocol Support	Yes
Array Roaming	Yes
Power requirements	AC 90V ~ 264V Full Range 8A / 5A at 115V / 230V, 47Hz ~ 63Hz
Environmental
Relative Humidity:	10% ~ 85% Non-condensing
Operating Temp:	10°C ~ 40°C (50°F ~ 104°F)
Physical Dimensions:	88(H) x 482(W) x 650(D) mm
Weight	15.5kg (without drives)
