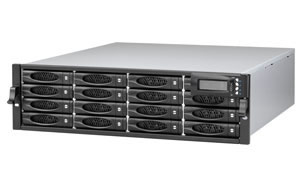

EPICa Series EP-3163S1/D1-S6S6
3U 6Gb SAS – 6Gb SAS Redundant RAID Subsystem
Features
Supports RAID levels 0, 1, 10(1E), 3, 5, 6, 30, 50, 60 and JBOD
Supports online Array roaming
Online RAID level/stripe size migration
Online capacity expansion and RAID level migration
simultaneously
Support global and dedicated hot spare
Online Volume Set Expansion
Support multiple array enclosures per host connection
Greater than 2TB per volume set (64-bit LBA support)
Greater than 2TB per disk drive
Supports 4K bytes/sector for Windows up to 16TB per volume set
Disk scrubbing/ array verify scheduling for automatic repair of all
configured RAID sets
Login record in the event log with IP address and service (http,
telnet and serial)
Support intelligent power management to save energy and extend
service life
Support NTP protocol to synchronize RAID controller clock over
the on-board LAN port
Max 128 LUNs (volume set) per controller
Transparent data protection for all popular operating systems
Instant availability and background initialization
Multi-path & load-balancing support (Microsoft MPIO)
Automatic synchronization of firmware version in the dual-active
mode
Supports S.M.A.R.T, NCQ and OOB Staggered Spin-up capable
drives
Supports hot spare and automatic hot rebuild
Local audible event notification alarm.
Redundant flash image for high availability
Real time clock support
|
Model
|
EP-3163S1/D1-S6S6 |
|
RAID Controller
|
6Gb SAS – 6Gb SAS |
|
Controller
|
Single or Redundant |
|
Host Interface
|
Two / Four 6Gb/s SAS (SFF-8088) |
|
Disk Interface
|
6Gb/s SAS, 6Gb/s SATA |
|
SAS expander
|
One / Two 6Gb/s SAS (SFF-8088) |
|
Capacity
|
|
|
- Direct Attached
|
16 Disks |
|
- Expansion
|
Up to 192 Disks |
|
Processor Type
|
800MHz Dual Core RAID-On-Chip processo |
|
Cache Memory
|
1GB ~ 8GB / 2GB ~ 16GB DDR3-1333
ECC Registered SDRAM |
|
Battery Backup
|
Optional |
|
Management Port support
|
Yes |
|
RAID Features
|
|
|
RAID level
|
0, 1,10(1E), 3, 5, 6, 30, 50, 60 and JBOD |
|
Array Group
|
Up to 128 |
|
LUNs
|
Up to 128 |
|
Hot Spare
|
Yes |
|
Drive Roaming
|
Yes |
|
Online Rebuild
|
Yes |
|
Variable Stripe Size
|
Yes |
|
E-mail Notification
|
Yes |
|
Online capacity expansion, RAID level / stripe size migration
|
Yes |
|
Online Array roaming
|
Yes |
|
Online consistency checkr
|
Yes |
|
SMTP manager and SNMP agent
|
Yes |
|
Redundant Flash image
|
Yes |
|
Instant availability and background initialization
|
Yes |
|
S.M.A.R.T. support
|
Yes |
|
MAID 2.0
|
Yes |
|
Bad block auto-remapping
|
Yes |
|
Enclosure
|
|
|
Platform
|
Rackmount |
|
Form Factor
|
3U |
|
# of Hot Swap Trays
|
16 |
|
Tray Lock
|
Yes |
|
Disk Status Indicator
|
Access / Fail LED |
|
Backplane
|
SAS2 / SATA3 Single BP |
|
# of PS/Fan Modules
|
500W x 2 w/PFC |
|
# of Fans
|
4 |
|
Power Requirements
|
AC 90V ~ 264V Full Range
10A ~ 5A, 47Hz ~ 63Hz
|
|
Environmental
|
|
|
Relative Humidity
|
10% ~ 85% Non-condensing |
|
Operating Temp
|
10°C ~ 40°C (50°F ~ 104°F) |
|
Physical Dimensions
|
590(L) x 482 (W) x 131(H) mm |
|
Weight (Without Disk)
|
24 / 25 Kg |
