Каталог - Дисковые массивы DAS - Дисковые массивы SAS - Proware Дисковый массив EP-2123D1-S6S6 6Gb SAS Dual controller - 12 x 3,5" HDD SAS/SATA

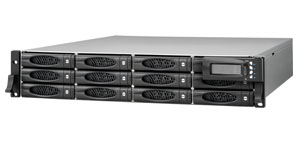

Proware Дисковый массив EP-2123D1-S6S6 6Gb SAS Dual controller - 12 x 3,5" HDD SAS/SATA

Цена: 716040 р
Наличие: Под заказ
Артикул: EP-2123D1-S6S6
Производитель:ProWare
EPICa Series EP-2123S1/D1-S6S6
2U 6Gb SAS – 6Gb SAS Redundant RAID Subsystem

※ Supports RAID levels 0, 1, 10(1E), 3, 5, 6, 30, 50, 60 and JBOD
※ Supports online Array roaming
※ Online RAID level/stripe size migration
※ Online capacity expansion and RAID level migration
     simultaneously
※ Support global and dedicated hot spare
※ Online Volume Set Expansion
※ Support multiple array enclosures per host connection
※ Greater than 2TB per volume set (64-bit LBA support)
※ Greater than 2TB per disk drive
※ Supports 4K bytes/sector for Windows up to 16TB per volume set
※ Disk scrubbing/ array verify scheduling for automatic repair of all
     configured RAID sets
※ Login record in the event log with IP address and service (http,
     telnet and serial)
※ Support intelligent power management to save energy and extend
     service life
※ Support NTP protocol to synchronize RAID controller clock over the
     on-board LAN port
※ Max 128 LUNs (volume set) per controller
※ Transparent data protection for all popular operating systems
※ Instant availability and background initialization
※ Multi-path & load-balancing support (Microsoft MPIO)
※ Automatic synchronization of firmware version in the dual-active
     mode
※ Supports S.M.A.R.T, NCQ and OOB Staggered Spin-up capable
     drives
※ Supports hot spare and automatic hot rebuild
※ Local audible event notification alarm
※ Redundant flash image for high availability
※ Real time clock support

Model
EP-2123S1/D1-S6S6
RAID Controller
6Gb SAS – 6Gb SAS
Controller
Single or Redundant
Host Interface
Two/Four 6Gb/s SAS (SFF-8088)
Disk Interface
6Gb/s SAS, 6Gb/s SATA
SAS expander
One/Two 6Gb/s SAS (SFF-8088)
Capacity

- Direct Attached
12 Disks
- Expansion
Up to 144 Disks
Processor Type
800MHz Dual Core RAID-On-Chip processor
Cache Memory
1GB ~ 8GB / 2GB ~ 16GB DDR3-1333 ECC Registered SDRAM
Battery Backup
Optional
Management Port support
Yes
RAID Features

RAID level
0, 1,10(1E), 3, 5, 6, 30, 50, 60 and JBOD
Array Group
Up to 128
LUNs
Up to 128
Hot Spare
Yes
Drive Roaming
Yes
Online Rebuild
Yes
Variable Stripe Size
Yes
E-mail Notification
Yes
Online capacity expansion, RAID level / stripe size migration
Yes
Online Array roaming
Yes
Online consistency checkr
Yes
SMTP manager and SNMP agent
Yes
Redundant Flash image
Yes
Instant availability and background initialization
Yes
S.M.A.R.T. support
Yes
MAID 2.0
Yes
Bad block auto-remapping
Yes
Enclosure

Platform
Rackmount
Form Factor
2U
# of Hot Swap Trays
12
Tray Lock
Yes
Disk Status Indicator
Access / Fail LED
Backplane
SAS2 / SATA3 Single BP
# of PS/Fan Modules
400W x 2 w/PFC
# of Fans
2
Power Requirements



AC 90V ~ 264V Full Range

7.5A ~ 4A, 47Hz ~ 63Hz
Environmental

Relative Humidity
10% ~ 85% Non-condensing
Operating Temp
10°C ~ 40°C (50°F ~ 104°F)
Physical Dimensions
590(L) x 482 (W) x 88(H) mm
Weight (Without Disk)
18.2 / 19.7 Kg
