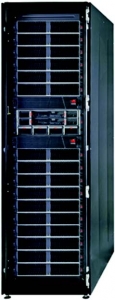

Huawei Система хранения данных OceanStor N8500

Цена:	по запросу
Наличие:	Под заказ
Артикул:	ENT-N2M96G-G8-AC-1
Производитель:	Huawei
Cпецификация:	Скачать PDF-файл

Описание

Hardware Specifications
Architecture		Multinode Active-Active cluster architecture
Number of nodes		2 – 24
Cache/node		Basic Version: 16 GB Standard Version: 24 GB Enterprise Version: 48 GB Enhanced Version: 96 GB up to 192 GB
GE ports/node		Standard configuration: 4 x GE, up to 16 x GE
10 GE ports/node		Up to 6 x 10 GE
Disk type		SSD, FC, SAS, SATA, NL-SAS
Physical storage capacity		Dynamically expandable up to 15 PB
Software Features
RAID levels		0, 1, 3, 5, 6, 10, 50
File system size		Dynamically expandable up to 256 TB
Maximum number of snapshots		512 (per file system)
Storage network protocols		FC, FCoE, iSCSI, NFS, CIFS, FTP, HTTP
Access control		NIS, Microsoft Active Directory, LDAP
Other protocols		NDMP, SNMP, NTP, SMI-S
Value-added functions		DST, Snapshot, Mirror, Quota, Replication, SmartCache (dynamic data cache technology), embedded Symantec NetBackup Client, De-Duplication, Compression, Anti-Virus, WORM, HyperThin (thin provisioning), HyperImage (snapshot), HyperCopy (LUN copy), HyperClone (split mirror), and HyperMirror (synchronous/asynchronous remote replication)
Quota		NFS/CIFS soft/hard quota management
Management mode		GUI, CLI
Compatible operating systems		Windows, Linux, Mac OS, Solaris, AIX, and HP-UX
Fault alarm modes		Email, SNMP, and Syslog
Physical Specifications
Power supply		AC: 100 V to 127 V/ 200 V to 240V DC:–48 V to –60 V
Power consumption	Engine	≤ 830 W (dual-node cluster)
	Storage unit	Controller enclosure: ≤ 830 W; Disk enclosure: ≤ 550 W
Dimensions (H x W x D)	Engine	4U, 175 mm x 446 mm x 502 mm (dual-node cluster)
	Storage unit	2U, Controller enclosure: 86.1 mm x 446 mm x 582 mm 4U, Controller enclosure: 175 mm x 446 mm x 502 mm 2U, Disk enclosure: 86.1 mm x 446 mm x 412 mm 4U, Disk enclosure: 175 mm x 446 mm x 412 mm
	Cabinet	42U, 205 cm x 57.5 cm x 118 cm
Weight	Engine	Dual-node clustered NAS engine: ≤ 43.6 kg
	Storage unit (in full configuration)	2U, Controller enclosure ≤29.9 kg/enclosure 4U, Controller enclosure ≤43.6 kg/enclosure 2U, Disk enclosure ≤26.5 kg/ enclosure; 4U, Disk enclosure ≤42.64 kg/enclosure
Operating temperature		5o C to 40o C
Operating humidity		5% RH to 90% RH
